METALPRESS MACHINERY — SASKATCHEWAN
Manufacturing Equipment for Saskatchewan’s Agricultural, Mining & Machinery Industries
Industrial presses, heavy-load handling and manufacturing equipment for agricultural machinery, mining equipment and fabricated-metal manufacturers across Regina, Saskatoon and Saskatchewan.
Equipment for the machines Saskatchewan industries depend on
Saskatchewan manufacturers build seeders, cultivators, harvesting systems, mining machinery, industrial equipment and large fabricated assemblies. These products operate under heavy loads, vibration, shock, dust and temperature extremes.
MetalPress Machinery supplies hydraulic, servo-hydraulic and servo-electric presses plus heavy-load and coil-handling equipment throughout Regina, Saskatoon and Saskatchewan.
Machinery and fabricated metal define the opportunity
Saskatchewan manufacturing is closely connected to agriculture, mining, energy and resource development. Machinery and fabricated-metal companies produce rugged equipment, structural components and specialized assemblies for demanding field and mine environments.
Agricultural machinery
Mining equipment
Fabricated metal
Repair & rebuild
Regina: agricultural equipment and short-line manufacturing
Regina’s manufacturing base includes short-line agricultural equipment for dryland farming as well as grain handling, transportation, industrial processes, mining and energy equipment.
Heavy component forming
Multiple machine models
Export-oriented production
Assembly operations
Servo-hydraulic presses for flexible machinery production
Agricultural and mining-equipment manufacturers frequently run Tool A today, Tool B tomorrow and an entirely new job next year. Servo-hydraulic control allows rapid approach, controlled contact, forming speed, pressure or position control, dwell and return to change by recipe.
Straightening large welded assemblies
Welding and heat treatment can introduce twist, bow and dimensional deviation into frames and heavy structures. A controlled workstation measures the component, positions it on supports, applies corrective force and verifies the result.
Large working bed
Support long frames, weldments and adjustable fixtures.Movable supports
Place reaction points according to the distortion being corrected.Crane access
Load heavy agricultural and mining components safely.Controlled force
Apply slow, measurable corrections instead of improvised methods.4-post presses for large, irregular components
Four-column architecture provides access from several directions for overhead cranes, forklifts, manipulators and custom fixtures. Applications can include straightening, forming, assembly, press fitting, testing and fixture-based work.
Controlled press-fit assembly
Installing pins, bushings, bearings, shafts, sleeves and hubs changes the requirement from bending metal to reaching the correct position with the correct force. Force-versus-position monitoring can reveal misalignment, dimensional variation, the wrong component or damage.
Target position
Confirm that the component reaches the intended depth.Force window
Identify insertion forces outside the acceptable range.Recipe control
Store parameters for multiple assemblies and product models.Quality record
Capture cycle results where traceability is useful.Saskatoon: agriculture meets mining
Saskatoon connects agriculture, mining and manufacturing. Equipment OEMs, fabricators, machine shops, repair facilities and industrial suppliers support potash, uranium and critical-mineral operations as well as farm-equipment production.
Large mining components
Very thick steel, structural weldments, large shafts and high-duty assemblies.Low-to-medium volume
Prioritize correct, repeatable production of expensive components.Manufacturing & service
Support new equipment, component repair, aftermarket work and rebuilds.Flexible workstations
Accommodate different assemblies, fixtures and force requirements.A rebuild press needs flexibility
Repair work changes constantly: a 20-ton assembly today, a large shaft tomorrow and another mining component next week. The press may restore valuable equipment rather than produce the same new part every cycle.
Large daylight
Accommodate tall and unusual assemblies.Adjustable stroke
Avoid unnecessary travel across very different jobs.Large bed & fixtures
Support multiple component geometries.Crane access
Position heavy workpieces and tooling.Programmable force
Adapt removal, assembly, straightening and testing operations.Match frame design to force and access
Straight-sided servo-hydraulic
High force, large tooling, frame rigidity and programmable cycles.4-post hydraulic
Open access for straightening, assembly, testing and irregular components.Servo-electric
Precise lower-force assembly, insertion, joining and testing.Custom hydraulic
A configurable platform for specialized production and rebuild processes.Rotate heavy workpieces instead of working around them

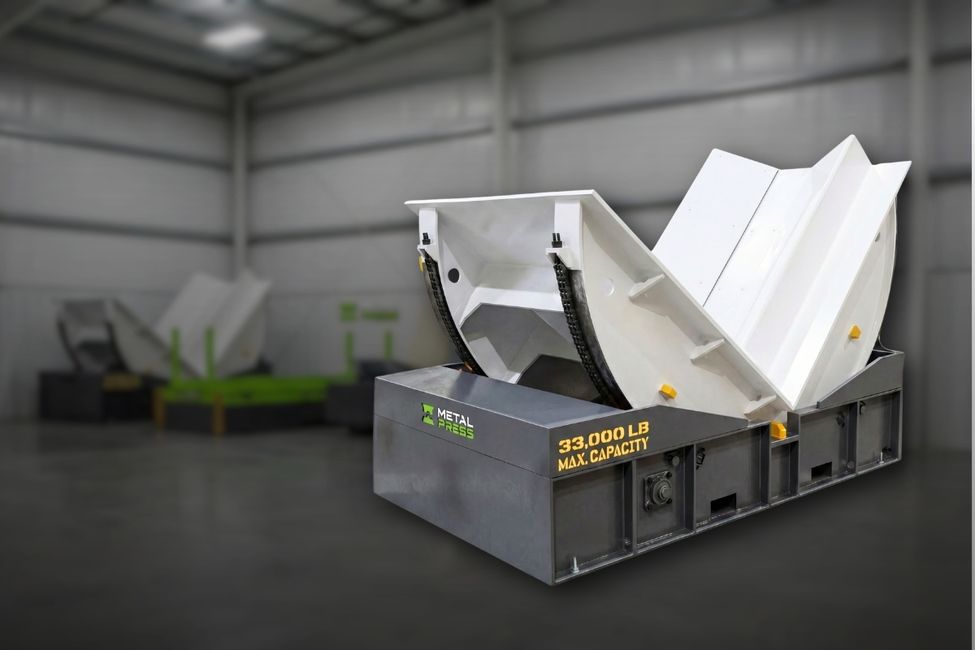

MDR heavy-load upenders can rotate compatible tools, weldments and industrial assemblies through 90 degrees. Repositioning the workpiece can improve access for welding, machining, inspection, assembly and maintenance.
Load definition
Provide weight, dimensions, centre of gravity and support points.Orientations
Define the exact starting and final positions.Workflow
Explain how cranes, forklifts or other equipment load and unload the system.Coil handling as a supporting capability
Some machinery manufacturers receive steel or aluminum in coil form. MCT coil tippers orient coils through 90 degrees, while MCC transfer carts move them between receiving, storage and production.
When should a Saskatchewan manufacturer consider a new press?
Current work is too manual
Replace jacks, cranes or improvised pressing with a controlled process.Components are larger
Add force, daylight, bed area and loading access.Product models are increasing
Use programmable motion, recipes and flexible tooling.Straightening is a bottleneck
Create a dedicated measured correction workstation.Assembly needs control
Monitor force and position for bearings, bushings and shafts.Repair volume is growing
Use one flexible machine for varied rebuild work.Select the machine from the manufacturing problem
Heavy structural forming
Servo-hydraulic or hydraulic press.Weldment straightening
4-post hydraulic press.High-force rigid forming
Straight-sided servo-hydraulic press.Bearing or bushing assembly
Hydraulic or servo-hydraulic press.Precision assembly
Servo-electric press.Mining-equipment rebuild
Large flexible hydraulic press.Heavy component rotation
MDR upender.Heavy tooling movement
Transfer cart.The component and process determine the final equipment configuration.
Information for a Saskatchewan press application
Component
Drawing, material, weight, length, width and height.Process
Forming, straightening, assembly, removal, testing or press fitting.Force
Required force, current capacity, estimate and present method.Loading
Crane, forklift, robot or manual handling.Production
Quantity per hour, week and year plus number of products.Facility
Footprint, clear height, crane capacity, power and installation access.Equipment for Saskatchewan manufacturers
MetalPress Machinery
Presses and heavy-load handling for agricultural machinery, mining equipment, fabricated metal and rebuild operations.
Dynamo Furnaces
Supporting aluminum melting, holding, chip recovery and scrap remelting applications where relevant.
Serving manufacturers across Saskatchewan
Axiom Machinery supports industrial-equipment projects in Regina, Saskatoon, Moose Jaw, Warman and surrounding agricultural, mining and manufacturing communities.
Building agricultural or mining equipment in Saskatchewan?
Tell us what the part is, its material, size and weight, the required operation and force, loading method, product mix and whether the work involves new production or equipment rebuild. Axiom and MetalPress can evaluate the frame, working area, controls and handling requirements.
